Motor
750W
Top Speed
28 MPH
Battery
48V 15AH
Tire
4.0” Fat Tires
Avg. Range
40 Miles
PayLoad Capacity
300 lbs

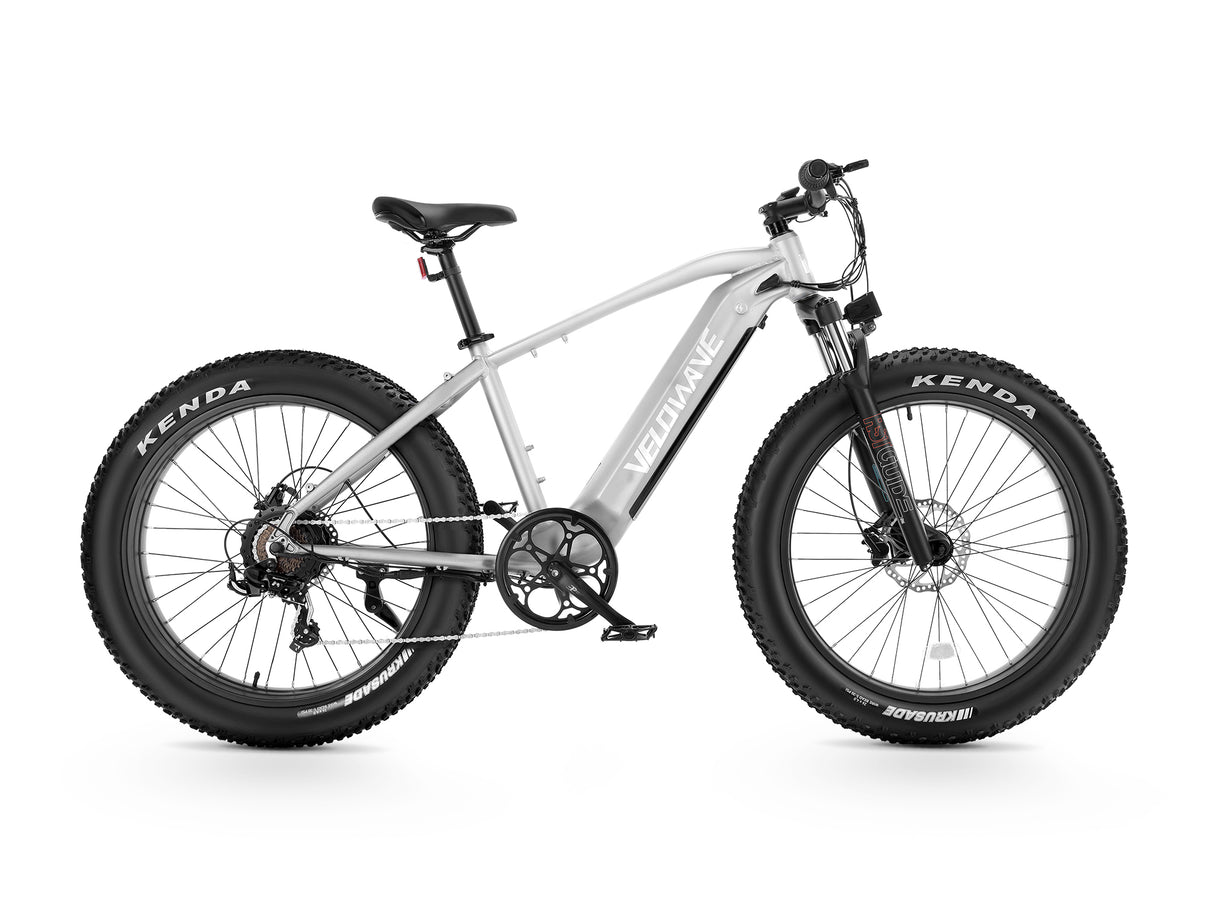

Ranger
Discover the ultimate freedom with the Ranger, Velowave's flagship electric bike, expertly designed for thrilling adventures of up to 40 miles.
Equipped with a powerful 750W motor and 4" fat tires, it delivers exceptional performance on both bustling urban streets and challenging rugged trails, offers outstanding traction and stability.
The classic frame design optimizes your riding position, ensuring comfort and efficiency for long-distance travels.
Why settle for ordinary ? Experience the perfect fusion of versatility and range with the Ranger.
Key Features
Durable Aluminum Frame
750W BAFANG Motor
Front Suspension

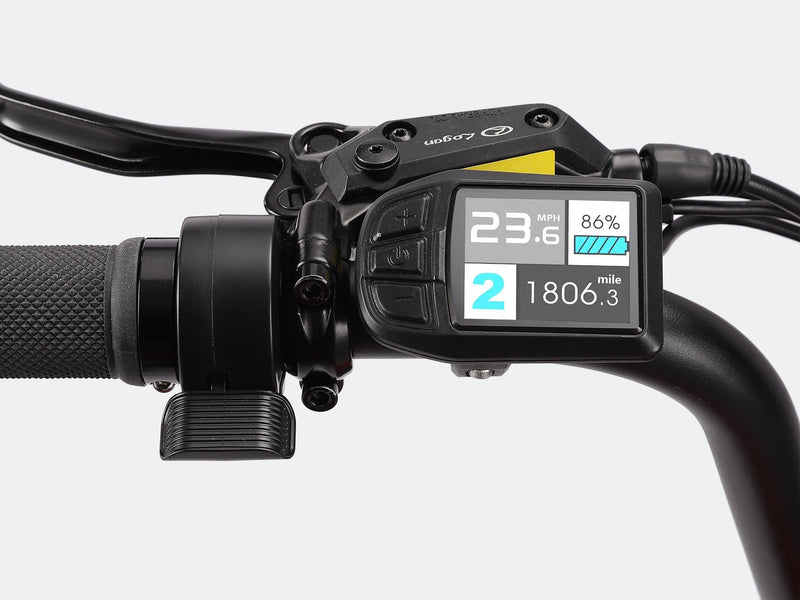

Smart Display
Convenient Control
Long-lasting Battery
Fat Tire Design
Rider Reviews
Assembly Tutorial
Velowave Ranger Review - All-Terrain Fat Tire Electric Bike - Good Looks & Performance?
Velowave Ranger eBike - Set Up, First Ride & Review!!
Max Speed Unlocked on my new Fat Tire Bike! ft. Velowave
Specs & Size
| Frame Size | Standard (mm) |
| Handlebar Height | 1080mm |
| Reach | 460mm |
| Head Tube Length | 125mm |
| Seat Tube Length | 457.2mm |
| Standover Height | 768mm |
| Wheelbase | 1188mm |
| Total Length | 1940mm |
| Seat Height Min/Max | 850mm/1084mm |
General
- Classes: Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed: 28MPH by pedal, 20MPH by throttle
- Range: Avg. 40 Miles* on PAS, up to 40 Miles on Level 1, 35 Miles* on Throttle (Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork: Hydralic Suspension Fork
Wheels
- Rim Material: Aluminum
- Rim Size: 26 x 3.0
- Front Wheel Spokes: 13K x 243
- Rear Wheel Spokes: 12K x 198
- Tire: Kenda Fat Tires
- Tire Size: 26" x 4.0"
E-system
- Battery: 48V 15Ah, 720Wh, LG 21700 Cells
- Charger: Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
- Motor: BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 80NM
- Controller: 48V 25A Peak
- Display: Multifunctional Color-Screen Display
- Pedal Assist: Cadence Sensor
- Throttle: Thumb Throttle
- Front Light: 48V 10W LED Light
Drivetrain
- Shifter: Shimano, 7-Speed
- Rear Derailleur: Shimano, Long Cage
- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel: 7-Speed
- Pedal: Alloy Platform Pedals
Components
- Saddle: Comfortable Wide Saddle
- Handlebar: Alloy, 705mm width
- Grips: Nylon Lock-on
- Brake: Front & Rear Hydralic Disc Brakes
- Brake rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand
- Seatpost: Forged Alloy, Ø31.6*350mm
- Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 100mm, RISE: ±6°
- Handlebar: Aluminum Ø31.8mm, Width 680mm
Weight
- Net Weight: 32kg(70.5lb)
- Gross Weight: 43kg(94.8lb)
- Battery Weight: 3.85kg(8.5lb)
- Weight limit: 136kg (300lb) Payload Capacity
Size
- Product Size: 1946x1120x705mm
- Packing Size: 1570x350x825mm
