Motor
750W
Avg. Range
40 Miles
Top Speed
25 MPH
Tire
4.0" Fat Tires
Battery
48V 15AH
PayLoad Capacity
330 lbs

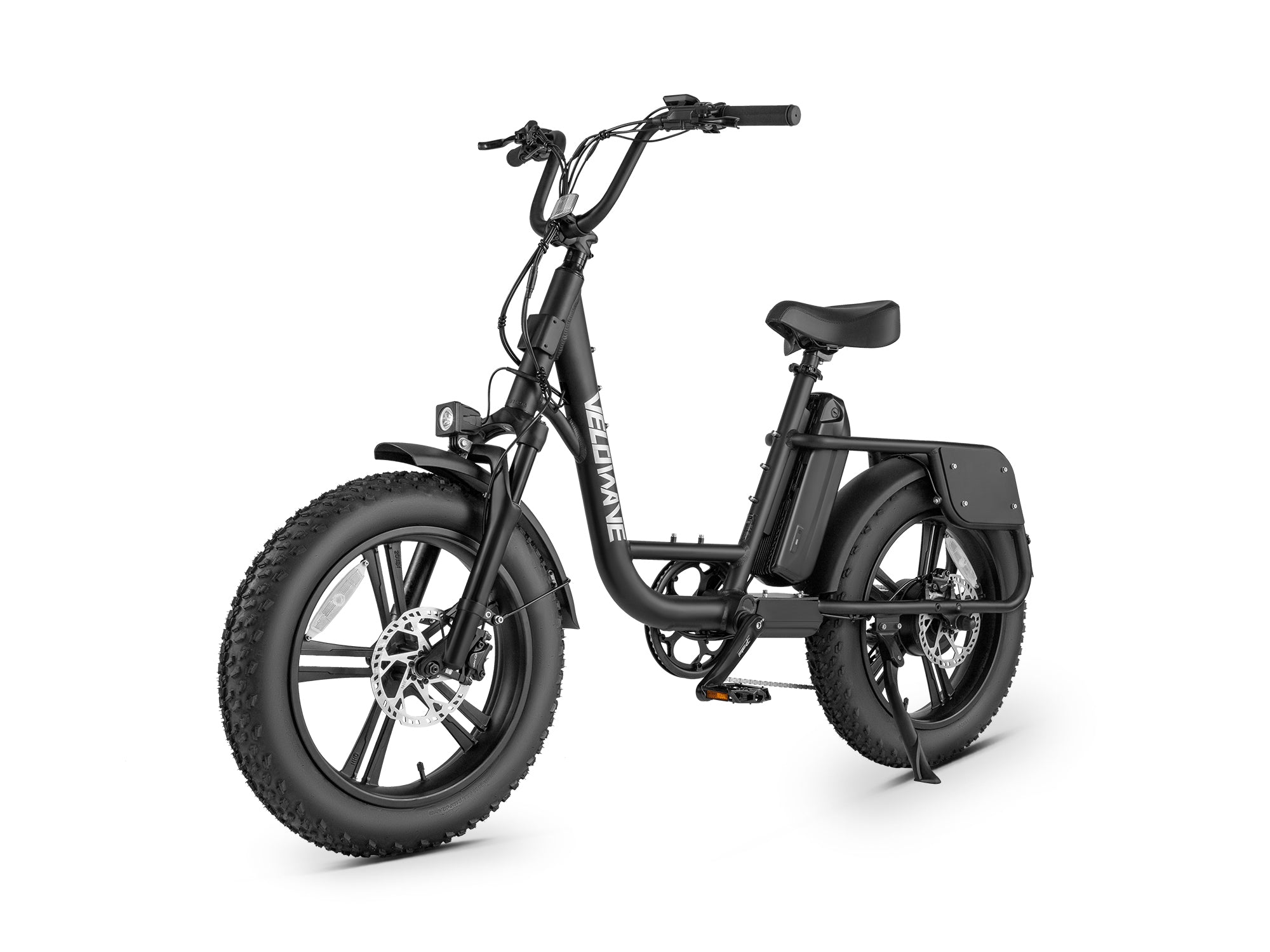

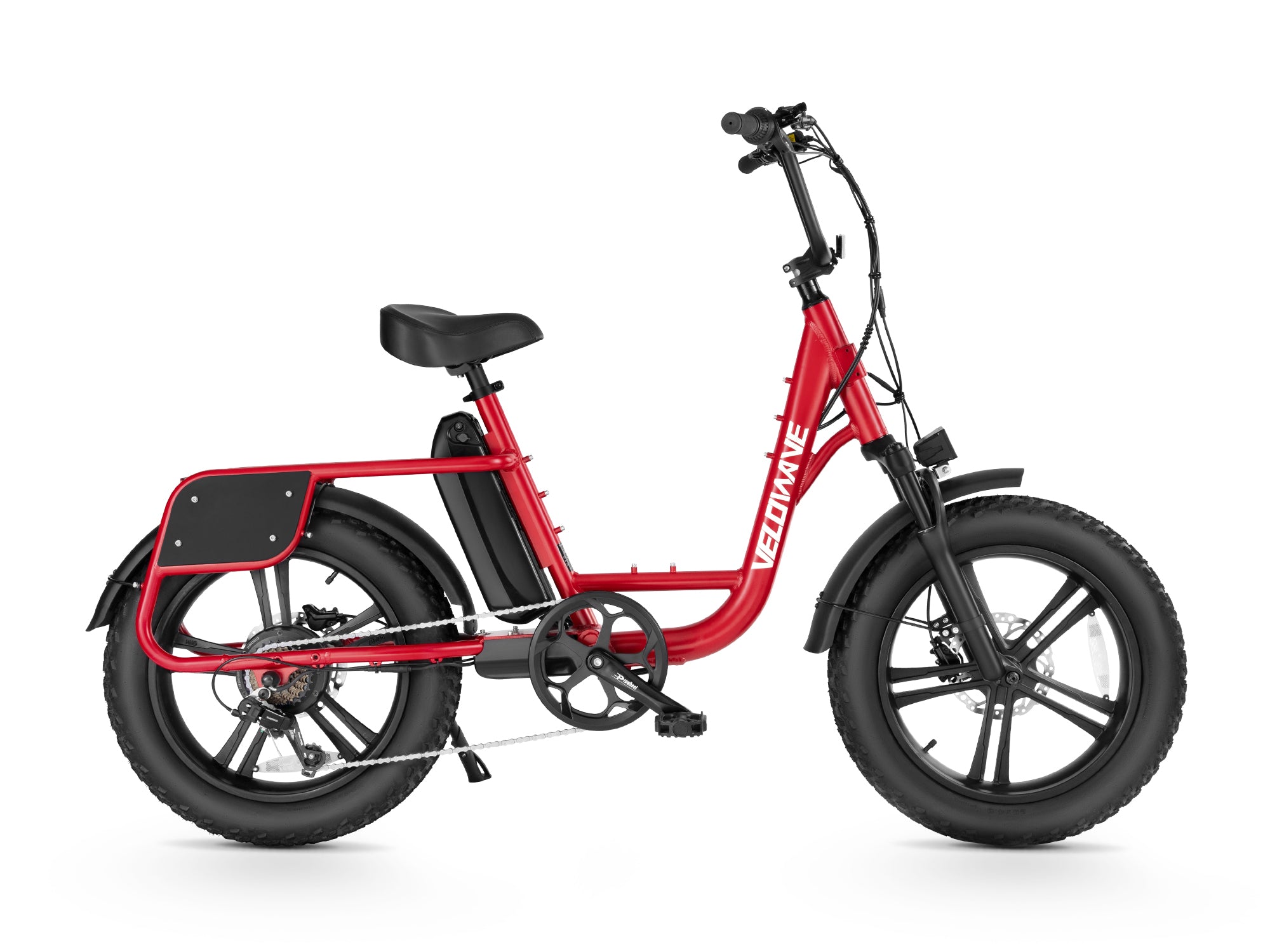

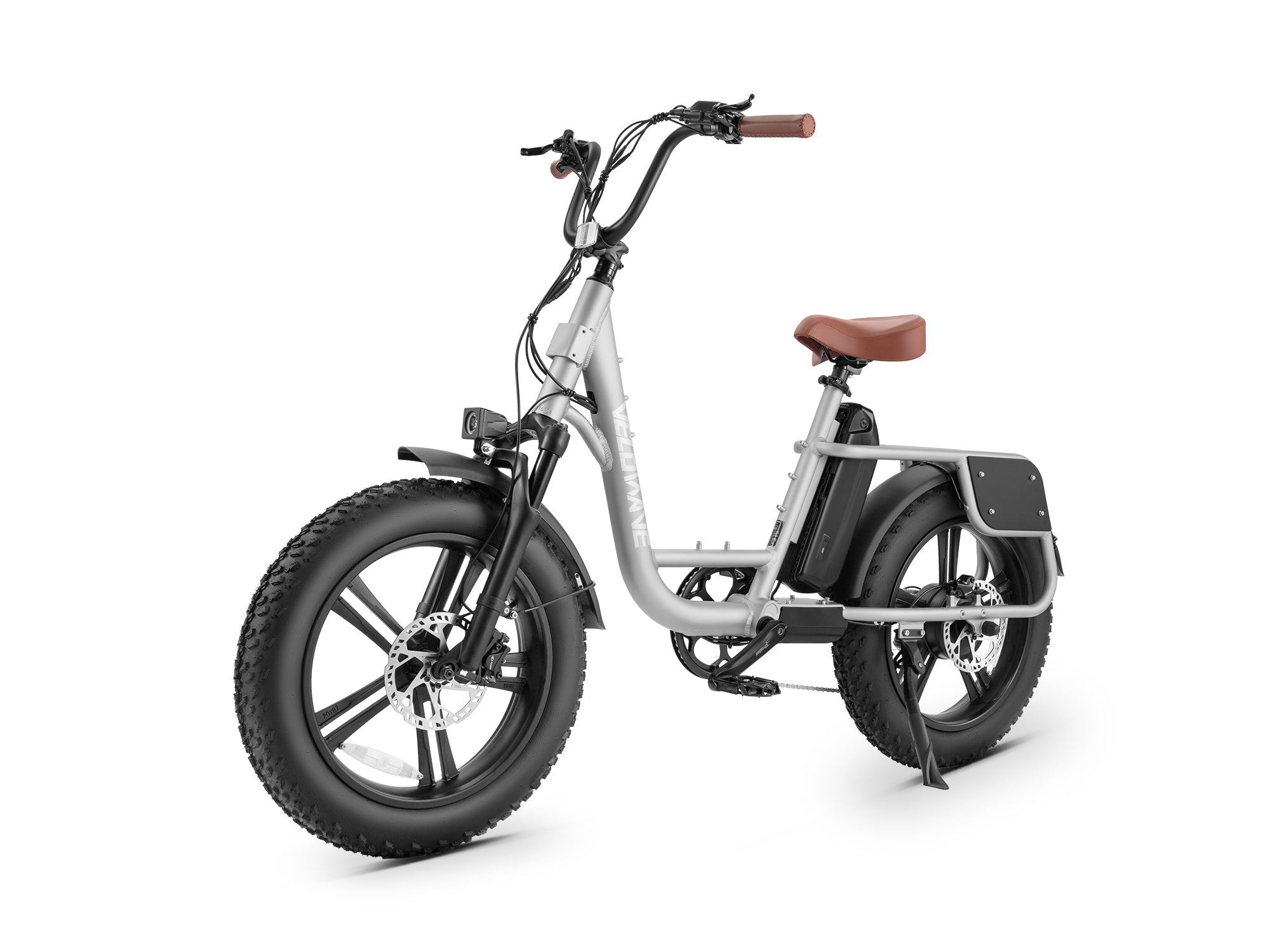

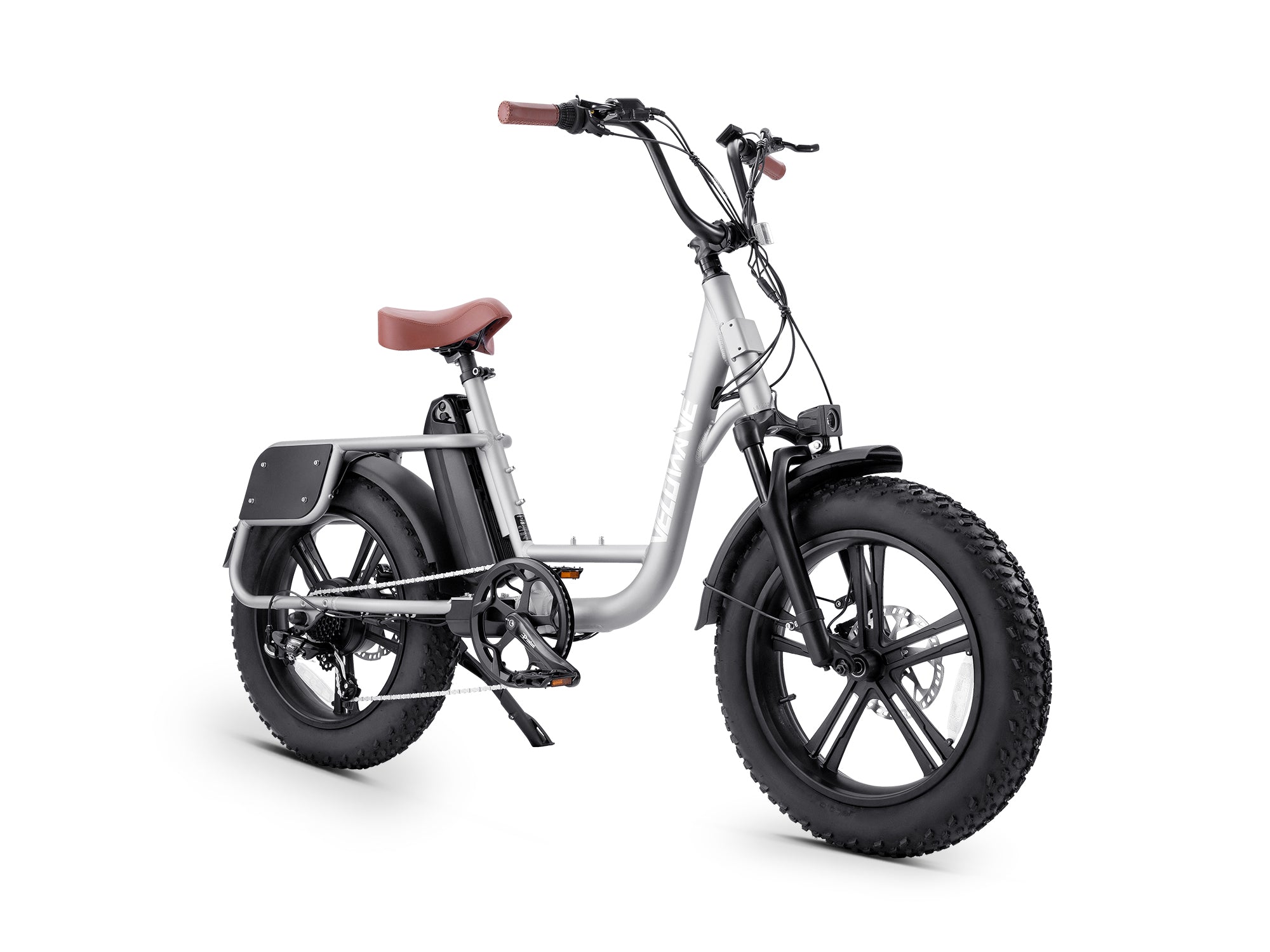

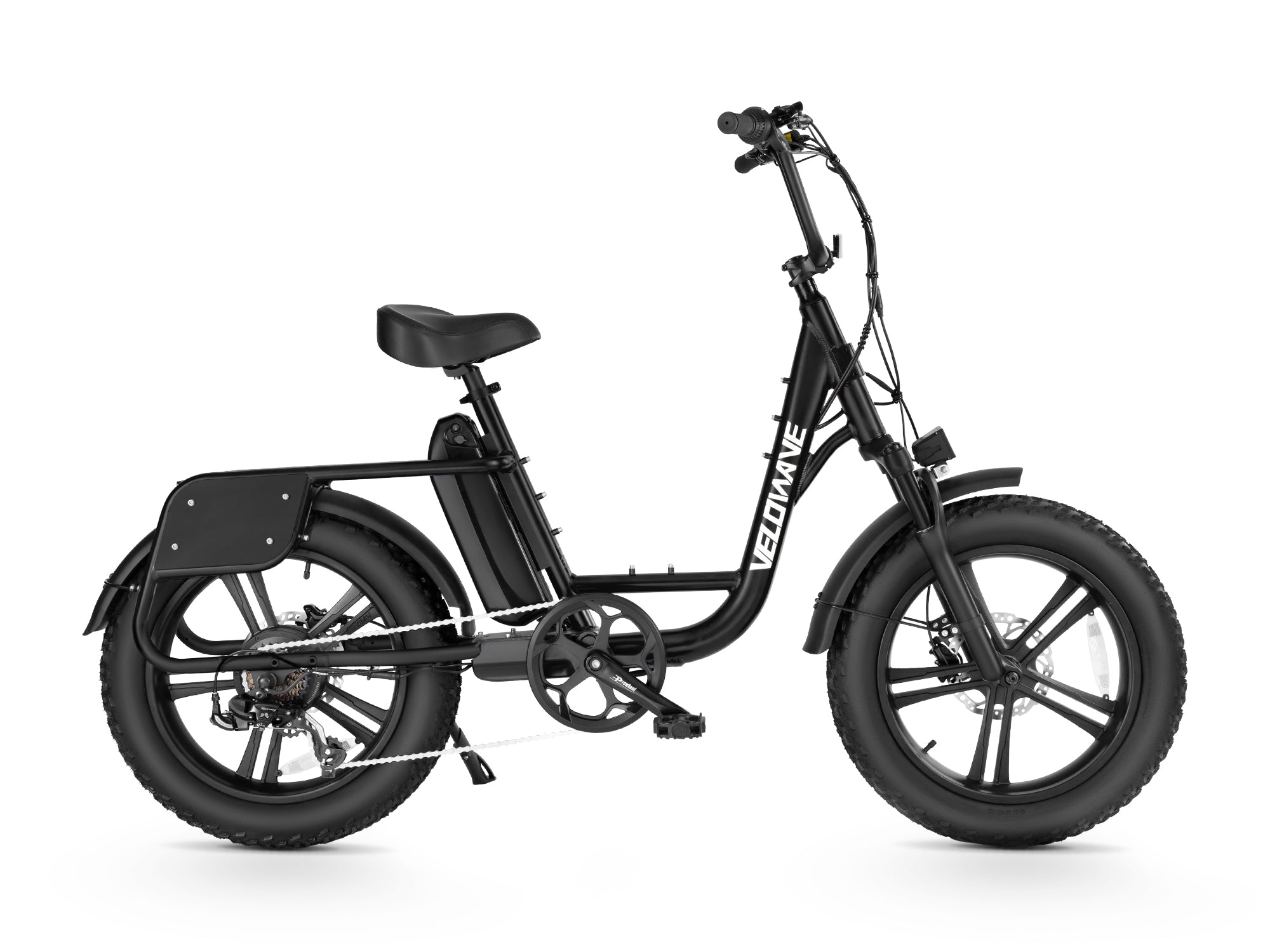

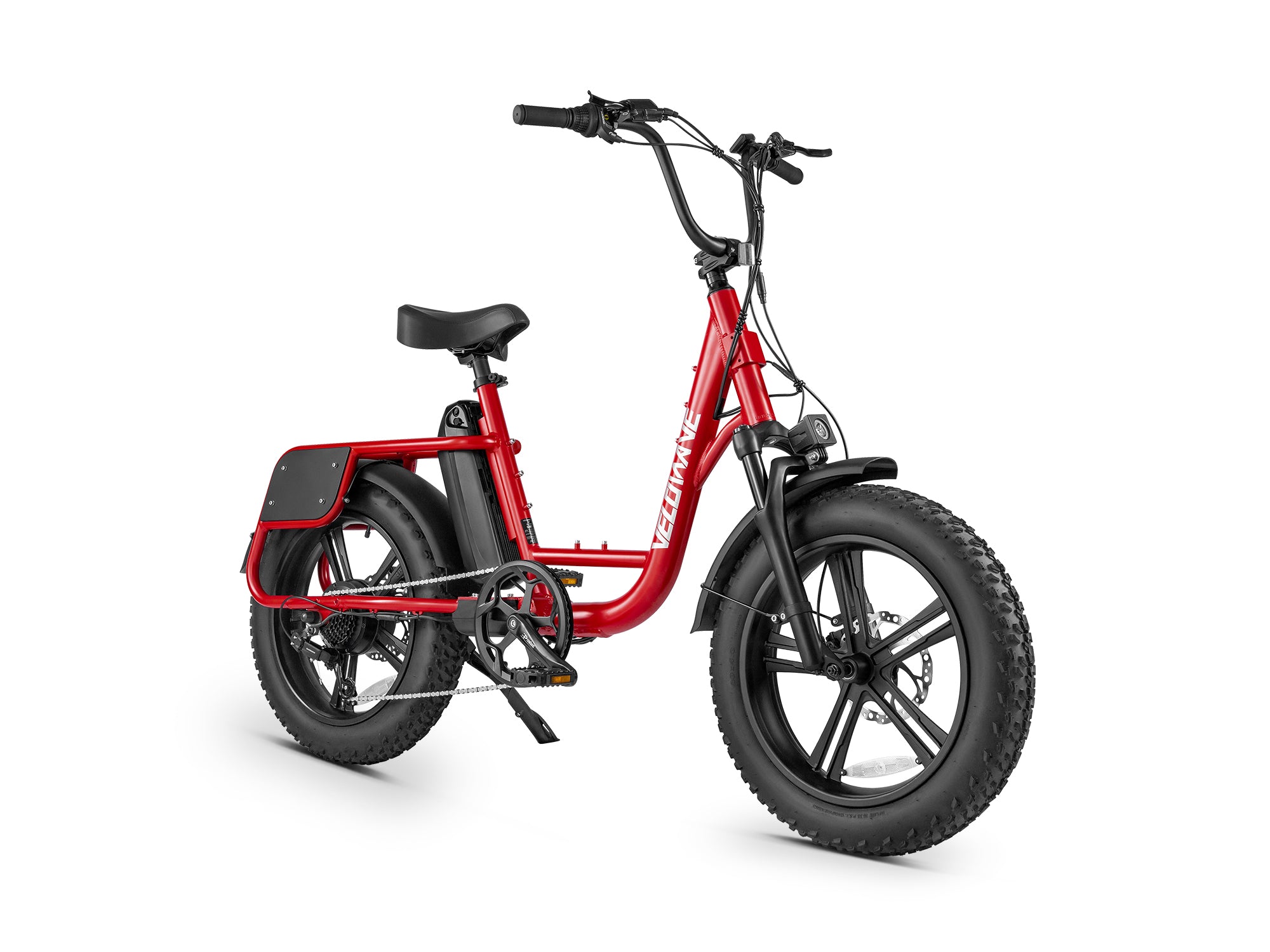

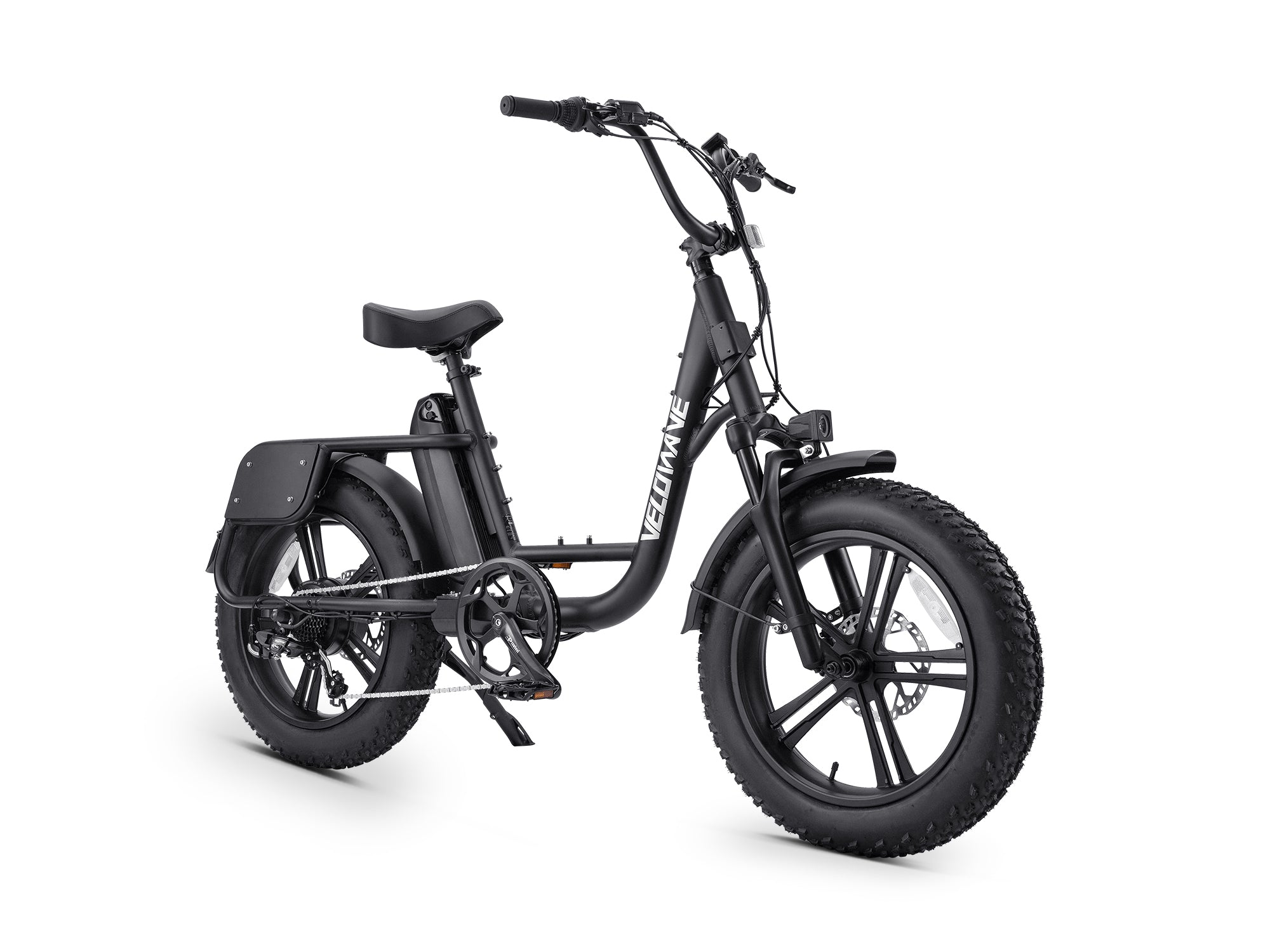

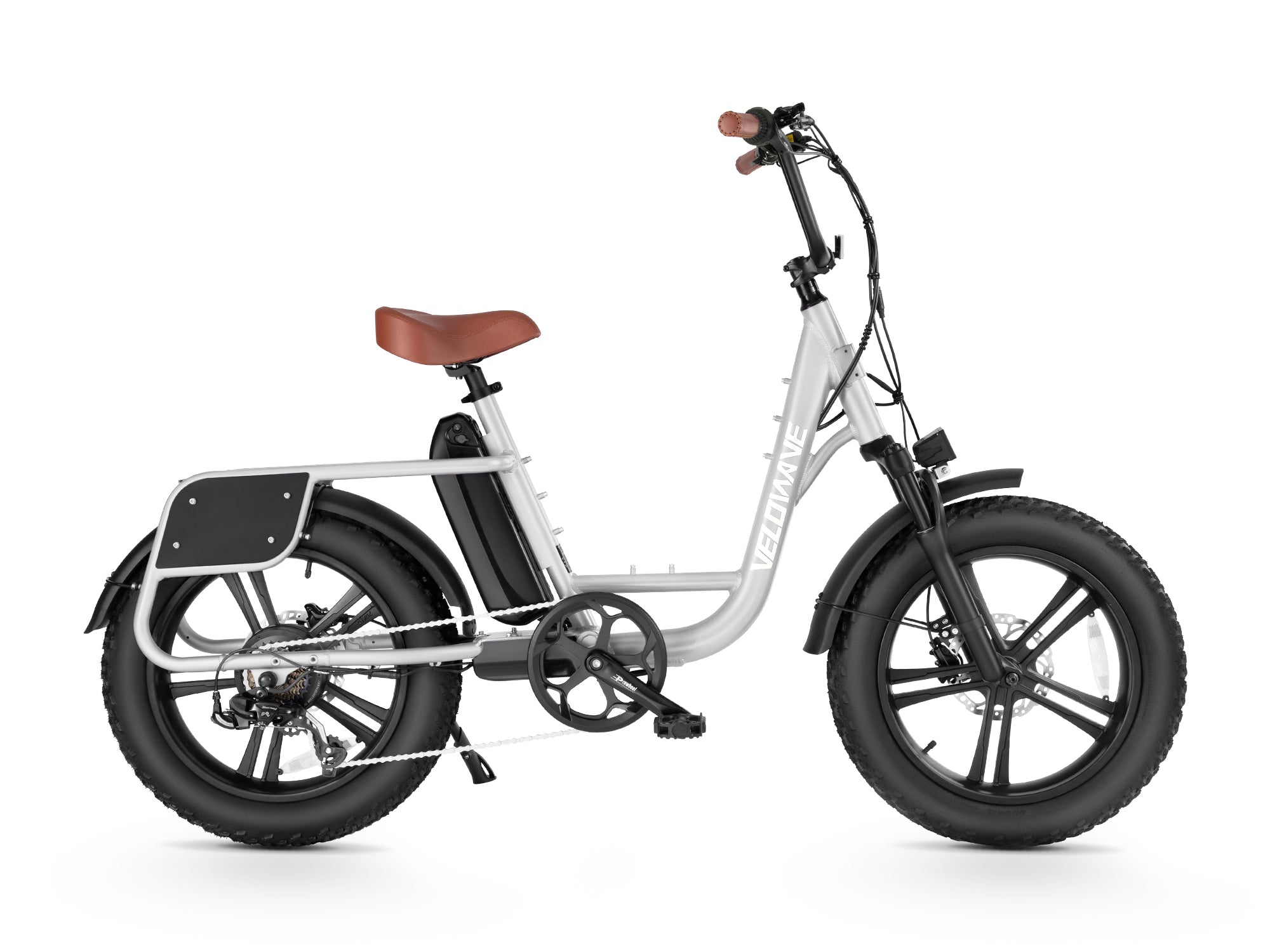

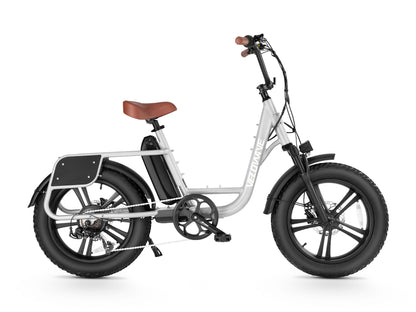

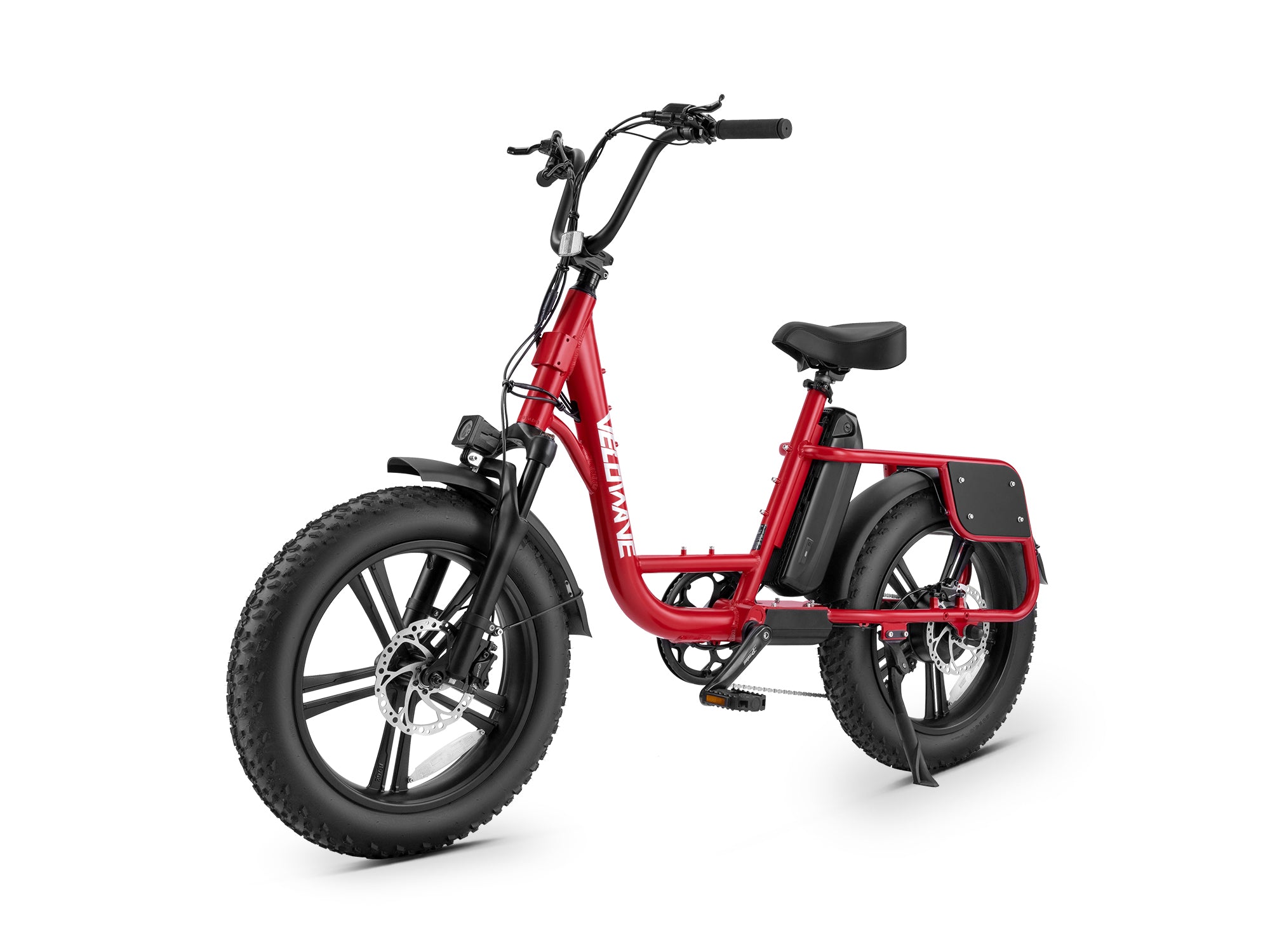

Prado S
The Prado E-Bike is designed with city and commuter riders in mind. Its large handlebar provides added comfort during your ride while its mudguards keep you clean on any terrain. Elevate your daily commute experience with Prado, which can travel up to 40 miles per charge - making it the ultimate partner for all your riding needs!
Key Features

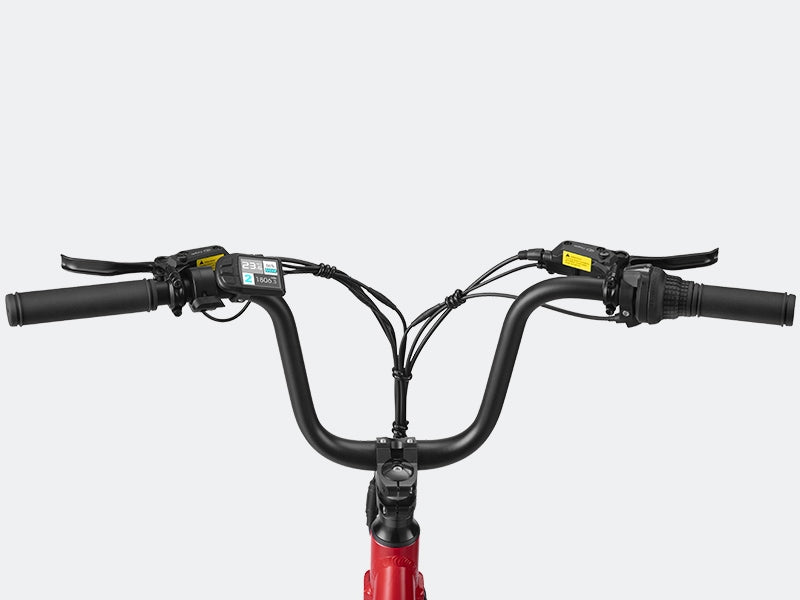

Comfortable Handlebar

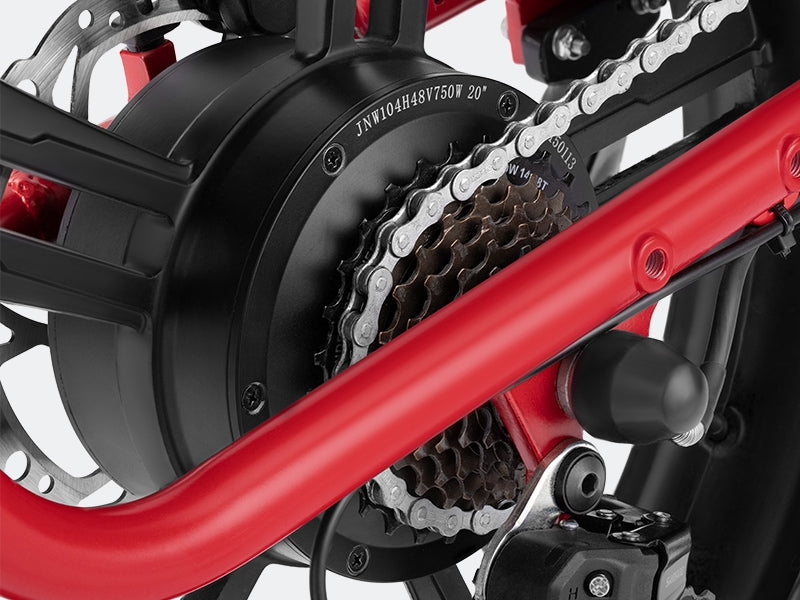

750W BAFANG Motor

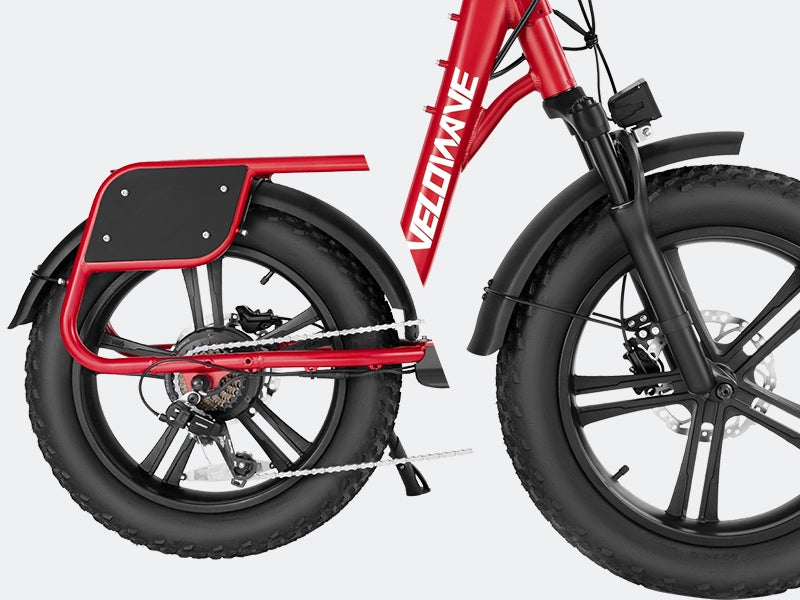

Fender Design

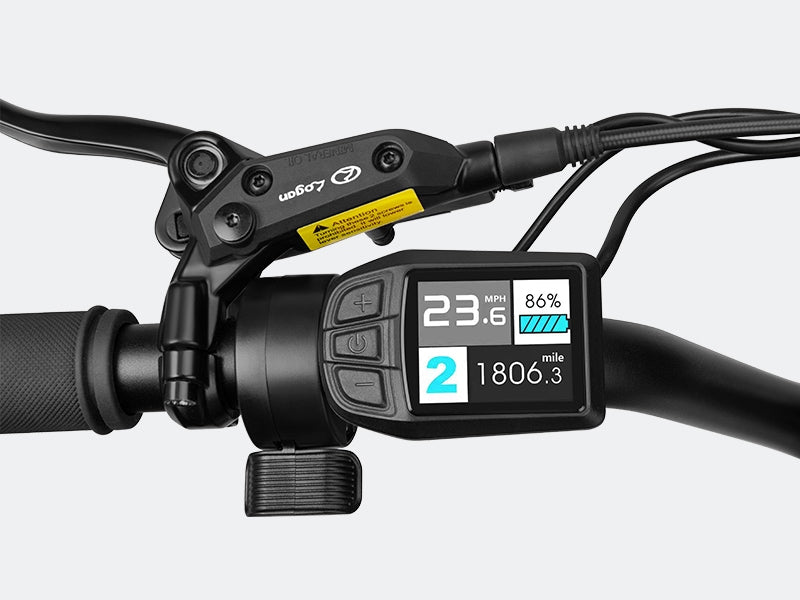

Throttle & Display

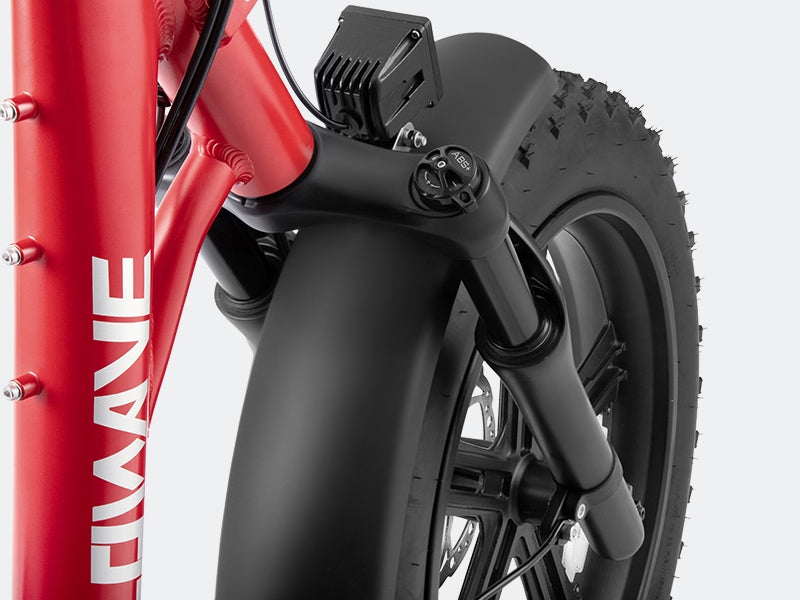

Front Suspension

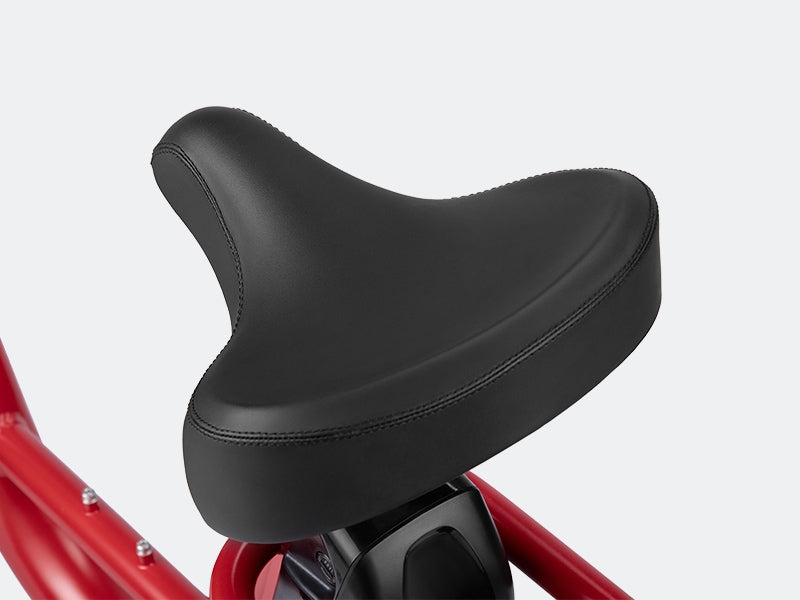

Comfortable Cushion

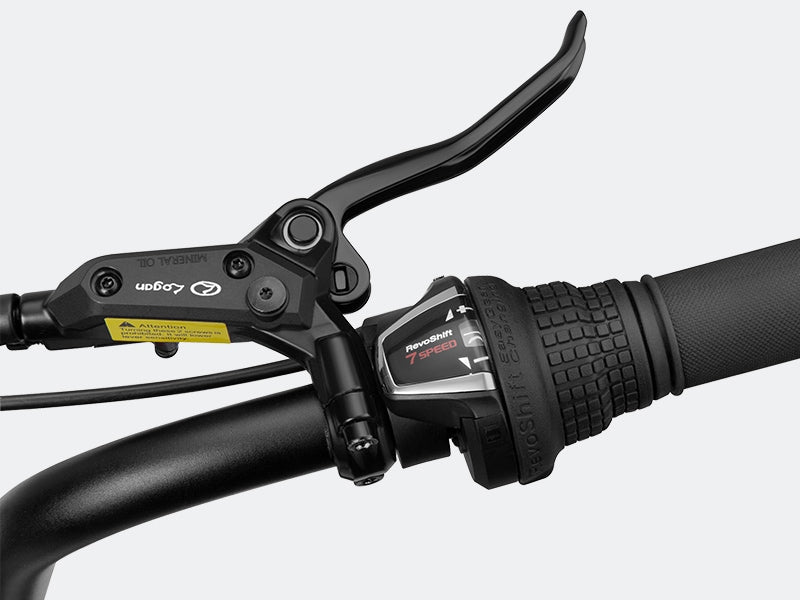

Convenient Control

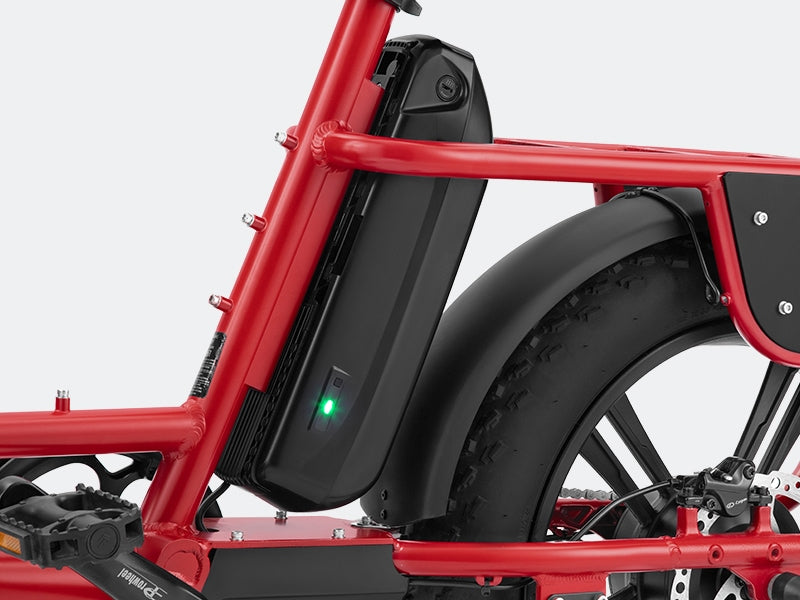

High-Capacity Battery

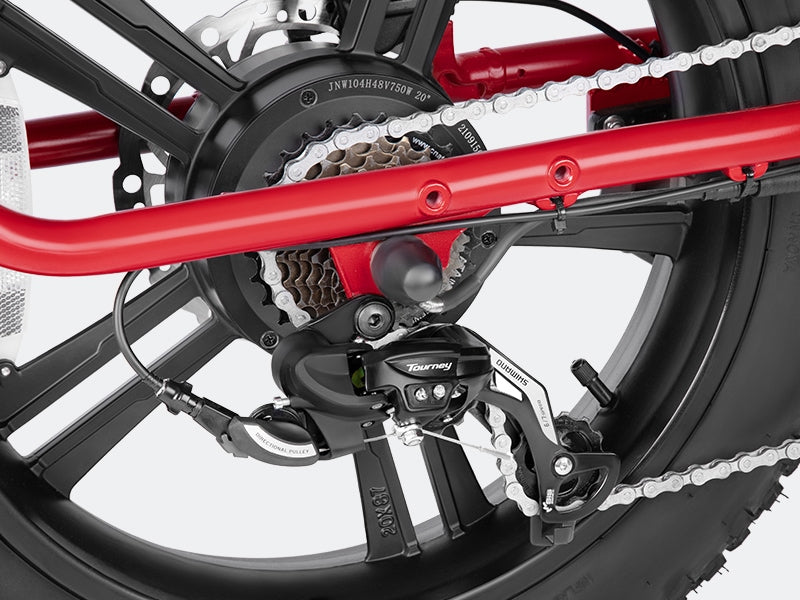

Shimano Drivetrain
Rider Reviews
Assembly Tutorial
Electric Bike up a Mountain Test! VELOWAVE Prado S
Velowave Electric bike...I love it and my grandsons loves it even more plus it is saving me gas.
I Can't Believe They Sent me This - Velowave Prado S EBike Review
Specs & Size
| Frame Size | Standard (mm) |
| Handlebar Height | 1190mm |
| Reach | 370mm |
| Head Tube Length | 240mm |
| Seat Tube Length | 480mm |
| Standover Height | 755mm |
| Wheelbase | 1170mm |
| Total Length | 1970mm |
| Seat Height Min/Max | 840/1050mm |
General
- Classes: Class 2(Ebikes can go up to 25mph with pedal assistance)
- Max Speed: 25MPH by pedal, 20MPH by throttle
- Range: Avg. 40 Miles* on PAS, up to 40 Miles on Level 1, 23 Miles* on Throttle (Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing, Rear Rack Integrated with Frame
- Fork: Hydralic Suspension Fork
- Fenders: Included
Wheels
- Rim Material: Aluminum
- Rim Size: 20 x 3.0
- Rim Type: Wheel with Integral Hub
- Tire: Kenda Fat Tires
- Tire Size: 20" x 4.0"
E-system
- Battery: 48V 15Ah, 720Wh, LG 21700 Cells
- Charger: Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
- Motor: BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 55NM
- Controller: 48V 25A Peak
- Display: Multifunctional Color-Screen Display
- Pedal Assist: Cadence Sensor
- Throttle: Thumb Throttle
- Front Light: 48V 10W LED Light
Drivetrain
- Shifter: Shimano, 7-Speed
- Rear Derailleur: Shimano, Long Cage
- Crank & Chainring: 52T, 160mm Alloy Crank
- Freewheel: 7-Speed
- Pedal: Alloy Platform Pedals
Components
- Saddle: Comfortable Wide Saddle
- Handlebar: Alloy, 730mm width
- Grips: Nylon Lock-on
- Brake: Front & Rear Hydralic Disc Brakes
- Brake rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand
- Seatpost: Forged Alloy, ∅31.6*350mm
- Stem: Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT: 40mm, RISE: 0°
- Handlebar: Aluminum ∅31.8mm,Width 710mm
Weight
- Net Weight: 35kg(77.2lb)
- Gross Weight: 46kg(101.4lb)
- Battery Weight: 3.5kg(7.7lb)
- Weight limit: 150 kg (330 lb) Payload Capacity
Size
- Product Size: 1790x730x1190mm
- Packing Size: 1530x320x860mm
